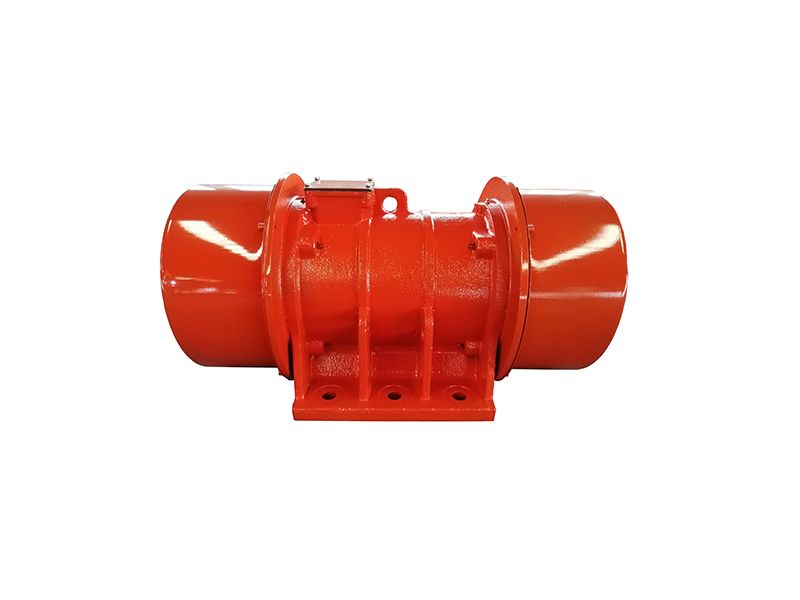

Application Scenarios1.Horizontal vibration motor for vibrating equipment2.Designed as excitation source for screening, feeding and conveying machines3.Stable vibration force with reliable performanceIntroductionXMV Series Horizontal Vibration Motor is a vibration motor designed for horizontal installation.It generates vibration force through the rotation of eccentric blocks mounted on both ends of the motor shaft, providing stable and adjustable excitation force.As a key power source of vibrating equipment, the XMV vibration motor is widely used to drive vibrating screens, vibrating feeders, and other material handling machines, ensuring reliable and efficient operation.Technical Specifications and Dimensions Table4 poles and 6 poles versions are available. For inquiries about other models, please contact us at any time.

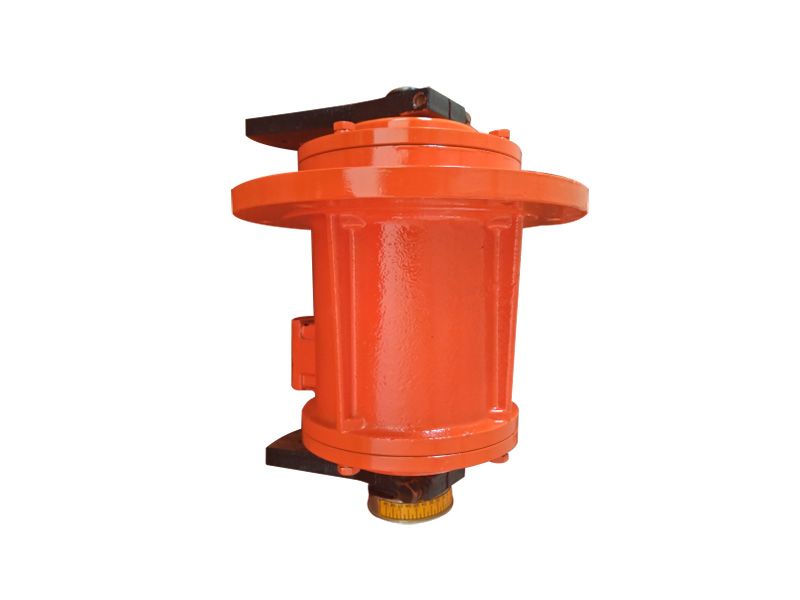

Application Scenarios1.Vertical vibrating motor for fine screening equipment.2.Designed to generate three-dimensional vibration force.3.Ideal excitation source for circular vibrating screens.IntroductionYZUL Series Vertical Vibration Motor is a vibration motor designed for vertical installation.It generates three-dimensional vibration force through the rotation of eccentric blocks installed at both ends of the motor shaft, producing vertical, horizontal, and inclined vibration simultaneously.This unique vibration mode makes the YZUL motor especially suitable for driving fine screening equipment such as rotary vibrating screens, ensuring high screening accuracy and stable performance.It is widely used in vibrating screeningmachines, vibrating grinding machines,vibratingcleaning machines, vibrating polishing machines, andvibrating mixing machines.Technical Specifications and Dimensions Table

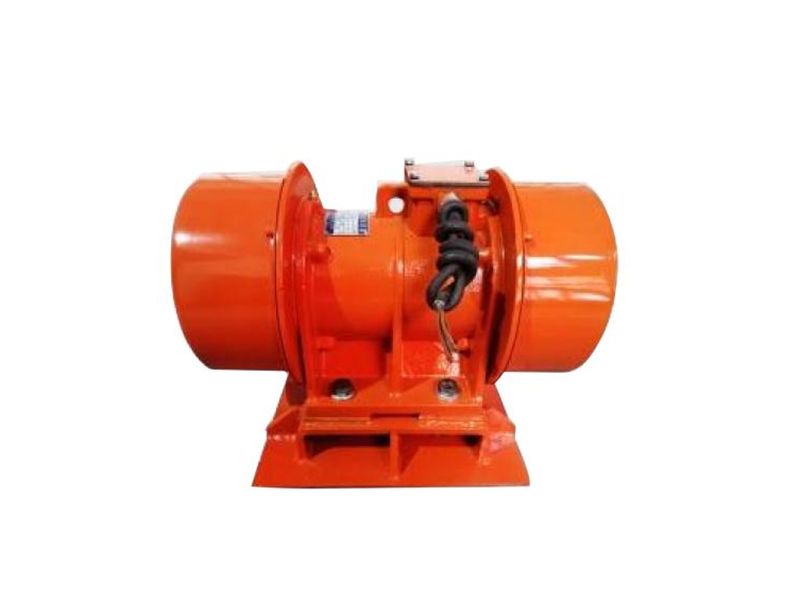

Application Scenarios1.Anti-blocking vibrating motor for silos and hoppers.2.Designed to eliminate material arching and bridging.3.Reliable vibration motor for bulk material discharge.IntroductionLZF Type Anti-Blocking Device, also known as a silo wall vibrator, is designed to eliminate material arching, bridging, and blocking in silos, hoppers, and bins.By applying controlled vibration to the silo wall, it helps materials flow smoothly and continuously.This device is widely used in bulk material handling systems to improve discharge efficiency and ensure stable operation of downstream equipment.Technical Specifications and Dimensions TableTypeWall thickness(mm)Capacity(T)Excitation Force(KN)Vibration Frequency(r/min)Power(KN)LZF-31.6-3.20.350.730000.075LZF-43.2-4.511.530000.15LZF-54.5-632.530000.25LZF-66-810530000.4LZF-108-1020830000.75LZF-1510-13501630001.5LZF-2013-201002030001.8LZF-2520-251503030002.0

Application Scenarios1.Side-mounted vibrating motor for heavy-duty vibrating equipment.2.Designed for installation on side plates of vibrating machines.3.Reliable excitation source for continuous industrial operation.IntroductionYZDC Series Side Plate Vibrating Motor is a vibration motor designed for installation on the side plates of vibrating equipment.It is typically used in pairs to generate stable and balanced vibration force for large and heavy-duty vibrating machines.With its robust structure and strong excitation capability, the YZDC motor is widely used in mining and other heavy industrial applications requiring reliable and continuous vibration.TechnicalSpecifications and Dimensions Table

Application Scenarios1.Flange-mounted exciter for bins and hoppers.2.Designed to eliminate material blocking and bridging.3.Stable vibration solution for bulk material discharge.IntroductionJFZ Flange-Type Vibration Exciter is a vibration device designed with a flange mounting structure.It is installed on bins, hoppers, or chutes through a flange connection, providing strong and stable vibration to improve material flow.With its firm installation and directional vibration output, the JZQ exciter is widely used in bulk material handling systems to prevent material arching, sticking, and blocking.Technical Specifications and Dimensions TableNO.TypeExcitation Force(KN)Power(KW)Installation Dimensions(mm)Φ1Φ2Φ3N-MRemark140-640114153653156-21AA60-660154554153658-21A375-67518.55004504008-21B4100-6100225304804308-21B5150-6150305905003958-21C6200-6200376205304208-21C7260-6260376305604308-21C8300-63004574065053012-21D

Application Scenarios1.Box-type vibrator for heavy-duty industrial applications.2.Designed to eliminate material blocking and improve flow.3.Robust vibration solution for bulk material handling.IntroductionJZQ Box Type Vibrator is a vibration device designed with a box-type structure.Its compact and reinforced housing allows it to generate strong and stable vibration, making it suitable for heavy-duty working conditions.This vibrator is widely used in bins, hoppers, chutes, and other bulk material handling equipment to prevent material arching, bridging, and blockage.TechnicalSpecifications and Dimensions Table

Application Scenarios1.Seated-type vibrator for bins, hoppers and chutes.2.Designed to improve material flow and prevent blocking.3.Reliable vibration solution for bulk material handling.IntroductionJZZ Seated Vibration Exciter is a vibration device designed with a seated (base-mounted) structure.It is installed at the bottom or side of bins, hoppers, and chutes to generate directional vibration, helping materials flow smoothly.This vibrator is widely used to prevent material arching, bridging, and sticking in bulk material storage and discharge systems.TechnicalSpecifications and Dimensions Table
