XMV Series Horizontal Vibration Motor-Vibration Motor-Products-Forest Sea Machinery Equipment Limited

Location：Home >Vibration Motor

Category：Vibration Motor

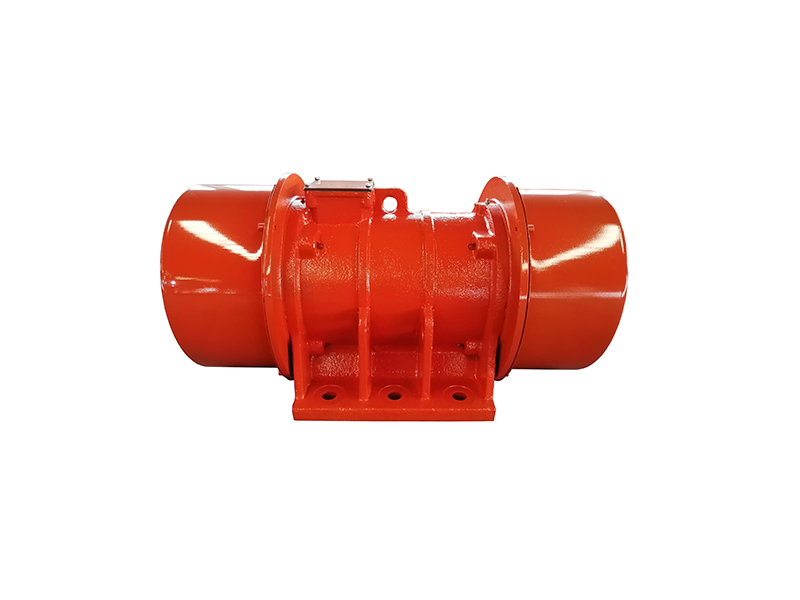

XMV Series Horizontal Vibration Motor

Application Scenarios1.Horizontal vibration motor for vibrating equipment2.Designed as excitation source for screening, feeding and conveying machines3.Stable vibration force with reliable performanceIntroductionXMV Series Horizontal Vibration Motor is a vibration motor designed for horizontal installation.It generates vibration force through the rotation of eccentric blocks mounted on both ends of the motor shaft, providing stable and adjustable excitation force.As a key power source of vibrating equipment, the XMV vibration motor is widely used to drive vibrating screens, vibrating feeders, and other material handling machines, ensuring reliable and efficient operation.Technical Specifications and Dimensions Table4 poles and 6 poles versions are available. For inquiries about other models, please contact us at any time.

Get Quote Contact

Introduction

Advantages

Application

Introduction

Application Scenarios

1.Horizontal vibration motor for vibrating equipment

2.Designed as excitation source for screening, feeding and conveying machines

3.Stable vibration force with reliable performance

Introduction

XMV Series Horizontal Vibration Motor is a vibration motor designed for horizontal installation.It generates vibration force through the rotation of eccentric blocks mounted on both ends of the motor shaft, providing stable and adjustable excitation force.

As a key power source of vibrating equipment, the XMV vibration motor is widely used to drive vibrating screens, vibrating feeders, and other material handling machines, ensuring reliable and efficient operation.

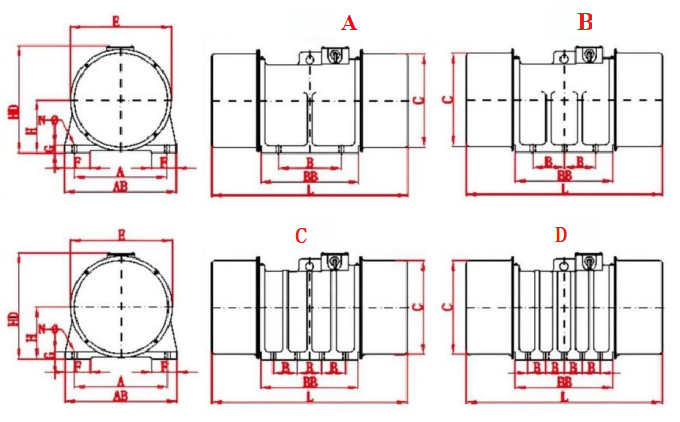

xmv1

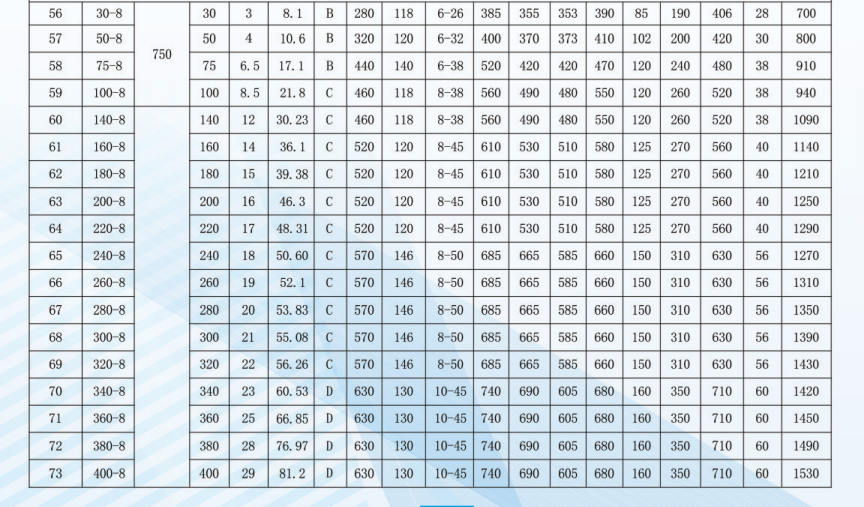

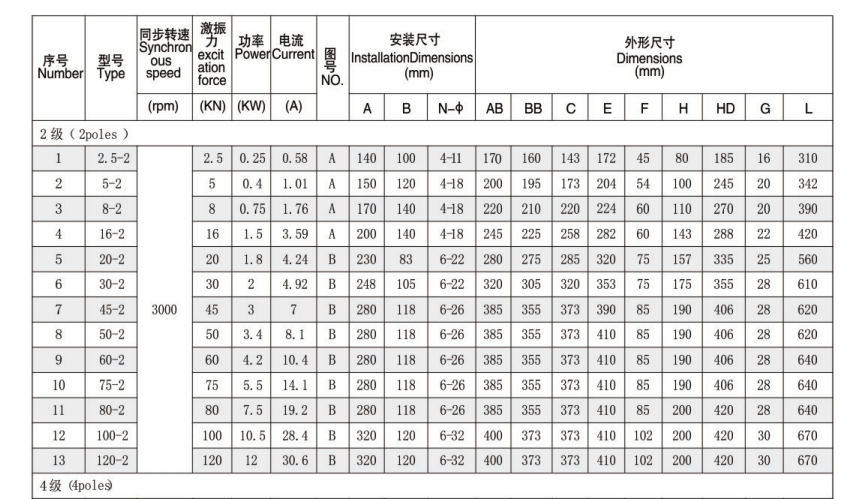

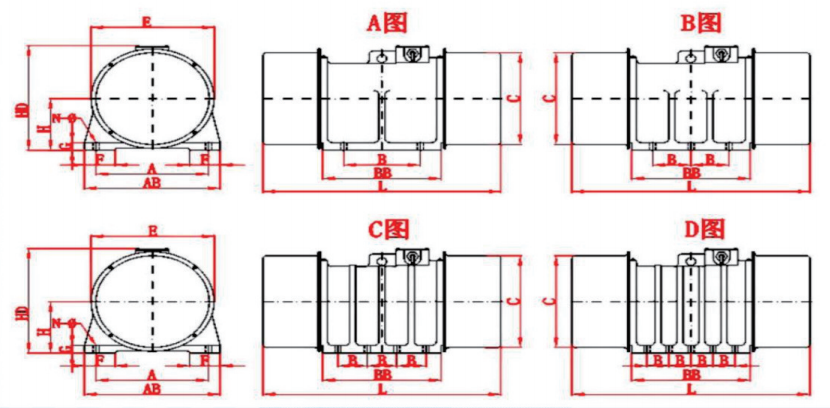

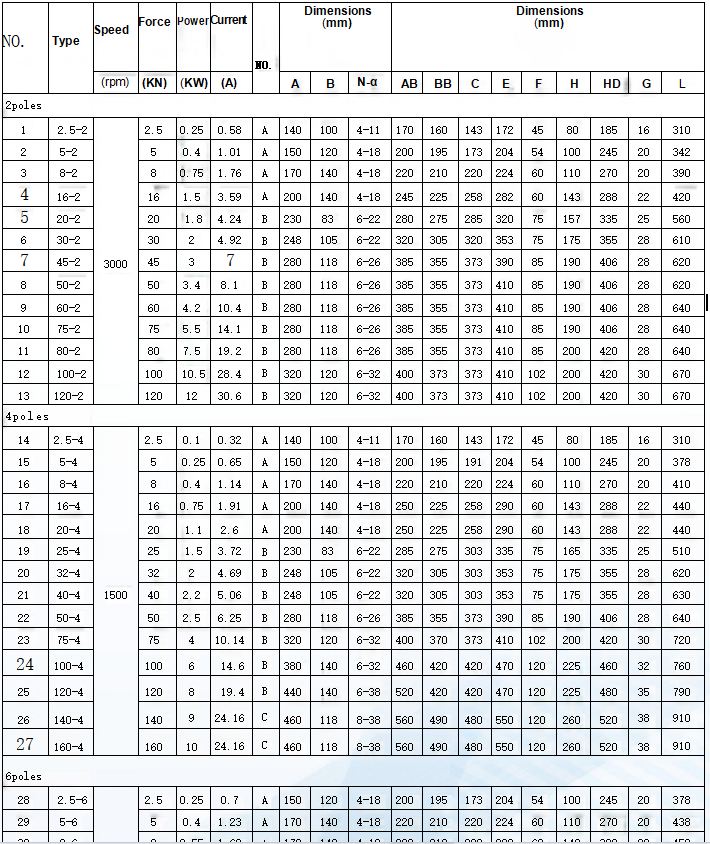

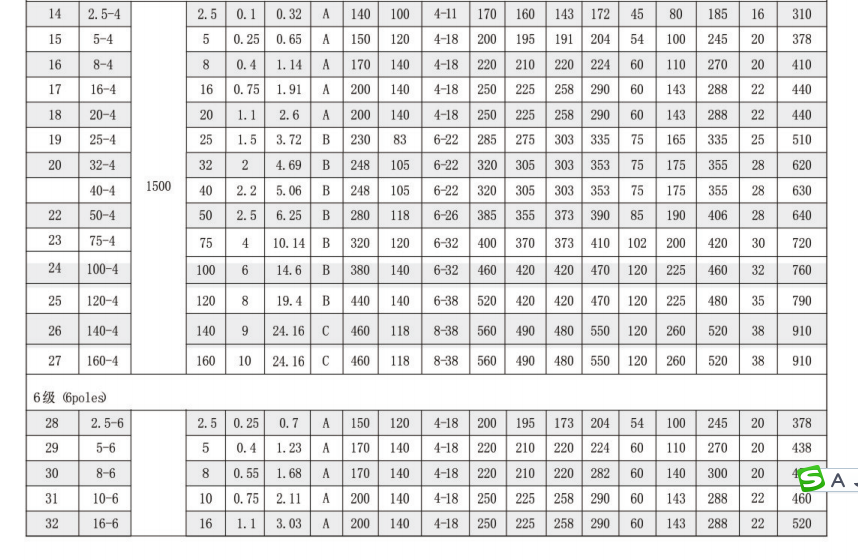

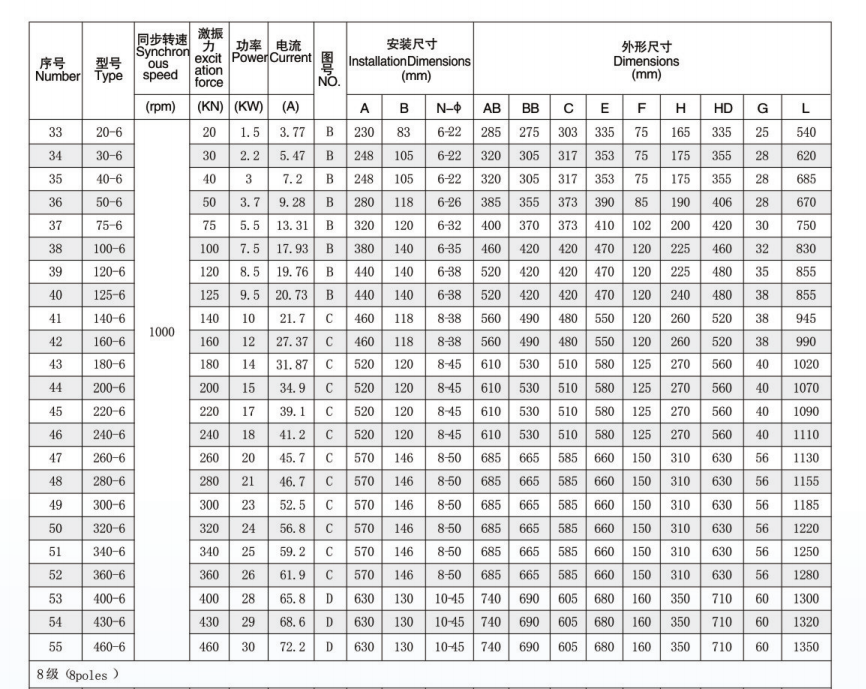

Technical Specifications and Dimensions Table

0adbad16c0a0eec297167201590bbecf

4 poles and 6 poles versions are available. For inquiries about other models, please contact us at any time.

Advantages

Factory direct supply

As a source manufacturer, we produce vibration motors and equipment on a large scale, eliminating intermediate links, with controllable costs and efficient supply. With strong strength, we are rooted in the industry and directly supply you with source products.

Products and services

Introduce advanced technology and innovation, and create vibration products based on "scientific, reliable, and stable" principles. We can provide a complete set of solutions and supporting services that meet diverse needs and are widely favored both domestically and internationally. With mature products and diverse services, we can help you efficiently solve vibration application problems.

R&D TEAM

Deeply cultivating for nearly 20 years, gathering professional talents, focusing on research in the field of vibration. We not only draw on the forefront of foreign technology, but also closely follow the actual situation of domestic and foreign customers, continuously improve and innovate, use profound technical accumulation and keen insight, innovate, and ensure product performance leads the industry.

Application

Mining Materials

Chemical Industry

Food Processing

Metal Powder

Petroleum Refining
