XZS Vibrating Screen is a high-precision fine powder screening machinery with low noise and high efficiency. It takes only 3-5 minutes to quickly change the screen mesh. It has a fully enclosed structure and is suitable for screening and filtering of granules, powders, and viscous liquids.Product characteristics and scope of use: 1, applicable to different dry powder, slurry product classification, Remove impurities work. 2, unique grid design, screen service life, convenient network change. 3, good sealing, powder does not fly, liquid leakage. The screen is not blocked, and the smallest screen can reach 500 mesh. 4, small volume, do not occupy space, easy to move. 5, modular structure, can also be customized.Main technical parametersTypeDiameter(mm)Screen area （m²）Screen specificationsLayersPower KwXZS-400Φ4000.081-500目1-50.25XZS-600Φ6000.240.55XZS-800Φ8000.450.55XZS-1000Φ10000.670.75XZS-1200Φ120011.1XZS-1500Φ15001.61.5XZS-1800Φ18002.432.2XZS-2000Φ20003.013Depending on the material properties, our company can customize ultrasonic vibrating screens, forced screens, PP material vibrating screens, and polyurethane material vibrating screens.

The straight-through screen (also known as a straight-discharge vibrating screen) uses a single or double vibrating motor as the excitation source. The vibrating motor is located on the side of the machine, and the material enters the equipment interior and performs an elliptical movement trajectory under the action of the excitation source on the screen surface. The material quickly and repeatedly completes the screening action, and the vibrational energy continuously dissociates, disperses, and reassembles the material, allowing it to quickly pass through the mesh. Material that cannot pass through the mesh is discharged from the screen by the machine's movement trajectory through the upper outlet, completing the screening process.Product features and scope of use:1, high screening efficiency, high screening accuracy, easy to maintain and clean, simple operation, etc.2.Complete a large number of screening operations in a relatively short time, and have high screening efficiency.3.easy to maintain and clean, will not produce the problem of dust flying, easy to operate, easy to master.4. In addition to large miscellaneous output, the direct type vibration sieve outlet is designed at the bottom of the sieve, and the finished product can quickly cross the mesh, reduce the residence time of materials in the screening surface, and greatly increase the screening output. Main technical parametersTypeDiameter(mm)Screen area （m²）LayersPower KwDimensions(mm)ZPS-6005800.261-20.181000*600*550ZPS-8007800.480.251100*800*600ZPS-10009600.720.251280*100*700ZPS-120011601.050.551550*1200*750ZPS-150014601.671.51850*1500*900

GJS series efficient fine screening machine is ordinary motor for power source, drive equipment on the shock, the vibration shock power through the sieve box will be a reciprocating multidimensional unity movement to the screen, so that the material in the sieve front can quickly dispersed, so as to achieve efficient screening, fine screening purpose. Because of its excellent screening ability and screening accuracy characteristics, it is widely used in chemical industry, metallurgy, non-ferrous metals, food, abrasives and other industries.Product characteristics and scope of use:1, fully closed structure, dust does not fly, the use of heavy balance, so that the screening machine vibration is small, low noise. Meet the environmental protection and environmental protection requirements.2, the combination of circumference, ellipse, straight line three kinds of motion, the screening effect is good. Suitable for a variety of material screening.3, equipped with automatic tension and automatic cleaning of the screen installation system, so that the screen utilization rate is high, long life, change the network structure is simple and fast.4, strengthen the chassis, to ensure the more balanced operation of the equipment, but also according to the actual site situation of the hanging hook to meet the needs of customers.5. Improve the steel wire rope hanging structure to avoid steel wire wear.6. Two-layer screen frame design; there are also three-layer screen frame models for customers to chooseMain technical parameters型号规格Type 项目ProjectScreen size(mm)LayersSieve angle(°)Screen box movement (mm)Motor power (KW)Rotation frequency(r/min)Dimensions(mm)LengthHeightWidthGJS-10211000×21001~33-8633180~20032859651200GJS-10251000×250038229951200GJS-10301000×3000448410351251GJS-10361000×3600498510561280GJS-15251500×2500717.5382213311905GJS-15301500×3000423213521935GJS-15361500X3600509813622048GJS-15401500X4000552913802128GJS-18301800×3000468014872524GJS-18361800×3600530515062460GJS-18401800×4000578515682340GJS-20402000×40009211180~19042751905263GJS-20452000×4500489019302782GJS-20502000×5000540020002810

The wing screen is a kind of vibration screen that simulates the motion of artificial screen to a large extent, which is the vibrating screen that simulates the artificial screen. Suitable for screening all kinds of materials, including fine, ultra-fine powder materials, in the screening accuracy, efficiency, screen life and other indicators are 5-10 times of the conventional round sieve.Product features:1. Up to 5 times processing per unit area of traditional screening equipment;2. Material shows gradual spiral trajectory on screen surface, screen accuracy up to 90% -99%;3. Small volume, light weight, arbitrary adjustment within 360° circumference.4. low frequency, small load work, the screen is not easy to damage, reduce the operation and maintenance costs.5. fully closed structure, there is no material dust leakage phenomenon, workers are safer to operate.Main technical parametersTypeDiameter(mm)Screen area （m²）Feed size(mm)Screening size(mm)LayersMotor power（kW）YBS-100010000.66≤250.073-31-51.5YBS-120012000.982.2YBS-150015001.814YBS-200020002.84YBS-250025004.615.5Clean ways:1. Ultrasonic screen cleaningUltrasonic screen cleaning is suitable for the processing of very fine materials. This system uses high-frequency vibrations generated by the ultrasonic generator to reach the screen to achieve the purpose of screen cleaning. This device not only effectively cleans and unblocks the screen, but also significantly improves production capacity. There are currently our company's self-made ultrasonic and imported ultrasonic for users to choose. In addition, the style can be updated in time to meet the needs of different screening processes.2. Bouncing ball screen cleaningThis screen cleaning method is achieved by irregularly striking the screen with high-performance bouncing balls located below the screen and above the ball support plate. The structure is simple and easy to operate, and the effect is significant. It is suitable for screen cleaning and anti-blocking in most screening operations.

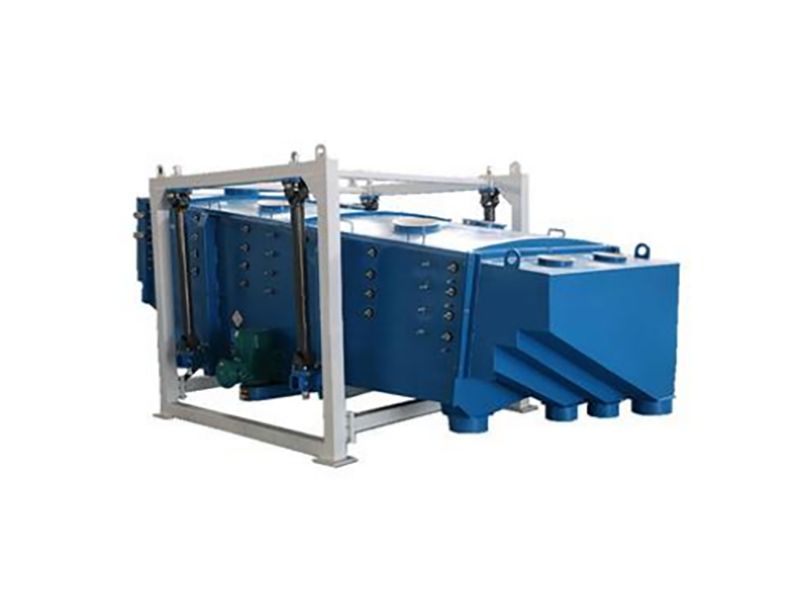

The square vibrating screen is a simulated manual screening equipment with a screen body that performs a horizontal circular rotary motion. The equipment can be changed according to customer needs for various numbers and combinations of screen layers. Because its working state is stable and there is no up-and-down vibration during operation, the product has the technical features of high output, high precision, long service life of the screen mesh, and low failure rate, which are greatly improved compared to traditional screening machines.Product features and scope of use:1. Full enclosed structure, no dust flying, low vibration and low noise of the screening machine, which meets environmental protection requirements.2. Easier screen mesh replacement, simple operation, and reliable fastening.3. Low frequency and small load, the service life of parts is increased by 5-10 times.Equipped with a screen mesh cleaning device, the screen mesh is not blocked.4. Designed with exquisite craftsmanship and unique structure, effectively achieving 7-level separation, screening precision up to 90-95%.5. A square vibrating screen can be cleverly combined to become a dual-channel compound vibrating screen, which can double the processing capacity and screening precision, making it a good choice for high-output customers.Main technical parameters型 号Type筛面尺寸（mm）Screen size筛面层数Layers筛面倾角Sieve angle(°)回转频次Rotation frequency(r/min)筛箱行程Screen box movement (mm)电机功率Motor power (KW)FYBS-10361000*36001-95±3180-26025-603FYBS-12361200*36004FYBS-15361500*36005.5FYBS-20402000*40007.5

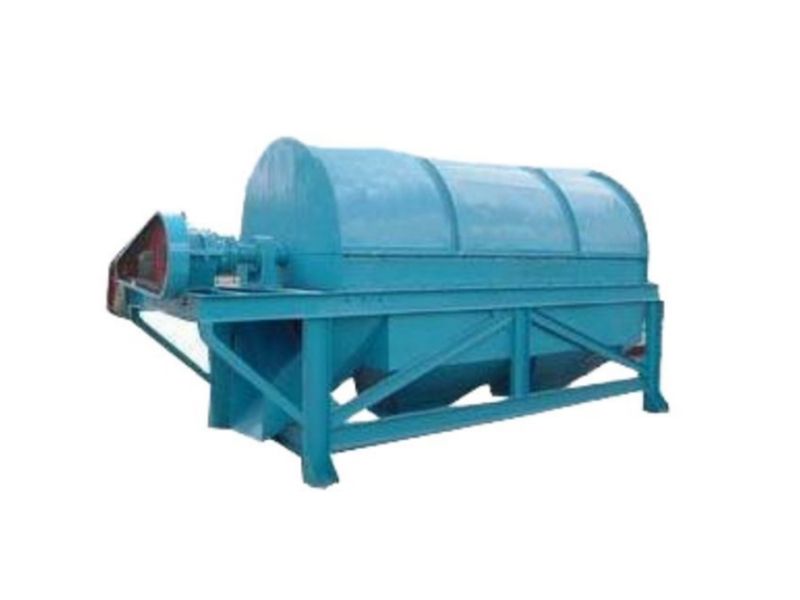

The GTS Series Drum Screen mainly consists of a motor, a reducer, a drum device, a frame, a sealing cover, and inlet and outlet material ports. It has the advantages of simple structure, stable operation, high screening efficiency, and easy maintenance. By installing a sealing device, it can effectively reduce material splashing and improve the working environment hygiene, thus facilitating environmental protection. The GTS Series Drum Screen can be used for screening various small and medium-sized granular and fine powder materials.Product Features:1. Stable performance and large processing capacity2. No clogging of screen holes, high screening efficiency3. Screen drum angle of 0-6 degrees can be designed according to screening requirements.Main technical parameters型号Type滚筒参数Roller parameters(mm)功率power (Kw)转速Rotation speed(rpm)处理量 Processing capacity (T/h)减速机形式Types of Reducers外形尺寸(mm)Dimensions直径*长度Diameter * Length长length宽width高height中心高Center heightGTS-1224φ1200*24007.518-200.5-50摆线针、齿轮减速机cycloidal pinion,gear reducer4400166022301400GTS-1230φ1200*30007.50.5-505000166022301400GTS-1530φ1500*3000111-1005200175033001700GTS-1536φ1500*3600111-1005800175033001700GTS-1836φ1800*3600152-2006500256037002400GTS-1845φ1800*4500152-2007400256037002400GTS-2245Φ2200*4500222-3507500295040002800GTS-2850Φ2800*5000302-3808000350046003000Our company can customize special roller screens according to customers' requirements, such as conical screen cylinders, barrel screens without axles, and dual-shaft barrel screens.

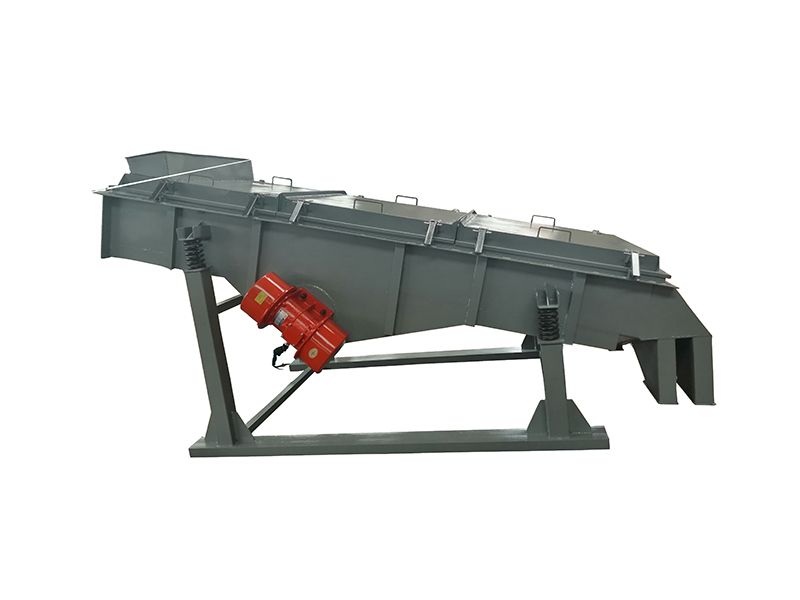

The XSZ Series Linear Vibrating Screen is a medium-sized and multi-layer screening machinery. It uses the vibration force generated by the vibration motor as the vibration source, and the material is thrown up on the screen mesh by the vibrating box, and at the same time, it moves forward in a linear jumping motion. Through multiple screen meshes, it can separate several specifications of screened materials and screened materials, and discharge them from their respective outlets.Product Features and Application Range:1. It has the characteristics of low energy consumption, high output, simple structure, easy maintenance, fully enclosed structure without dust overflow, and automatic discharge, which is more suitable for assembly line operation.2. The material travels a long distance on the screen mesh, resulting in high screening accuracy and large processing capacity. At the same time, it conveys the material over a long distance.3. The screen angle can be adjusted according to the particle size, perforation probability, and production rate of the material.4. The use of a small ball cleaning system can effectively solve the problem of material jamming on the screen.5. It can be designed with different shapes and structures according to the production site. Such as: upper vibration, lower vibration, and side vibration.Main technical parameters型号Type筛面尺寸（mm）Screen size筛面层数Layers物料粒度Material particle size筛面倾角Sieve angle(°)振幅Amplitude (mm)功  率PowerKWSZF-520500*20001-60.074-100°-7°4-102*(0.37-0.75)SZF-525500*25002*(0.37-0.75)SZF-10201000*20002*(0.37-0.75)SZF-10251000*25002*(0.37-1.1)SZF-10301000*30002*(1.1-1.5)SZF-10401000*40002*(1.1-1.5)SZF-12351200*35002*(1.1-2.2)SZF-12501200*50002*(1.1-2.2) SZF-15351500*35002*(1.1-2.)SZF-15601500*60002*(2.2-3.7)SZF-18451800*45002*(3.7-5.5)SZF-20502000*50002*(3.7-5.5) SZF-22602200*60002*(5.5-7.5)
