JFZ Flange-Type Vibration Exciter

Application Scenarios1.Flange-mounted exciter for bins and hoppers.2.Designed to eliminate material blocking and bridging.3.Stable vibration solution for bulk material discharge.IntroductionJFZ Flange-Type Vibration Exciter is a vibration device designed with a flange mounting structure.It is installed on bins, hoppers, or chutes through a flange connection, providing strong and stable vibration to improve material flow.With its firm installation and directional vibration output, the JZQ exciter is widely used in bulk material handling systems to prevent material arching, sticking, and blocking.Technical Specifications and Dimensions TableNO.TypeExcitation Force(KN)Power(KW)Installation Dimensions(mm)Φ1Φ2Φ3N-MRemark140-640114153653156-21AA60-660154554153658-21A375-67518.55004504008-21B4100-6100225304804308-21B5150-6150305905003958-21C6200-6200376205304208-21C7260-6260376305604308-21C8300-63004574065053012-21D

Get Quote Contact

Introduction

Advantages

Application

Introduction

Application Scenarios

1.Flange-mounted exciter for bins and hoppers.

2.Designed to eliminate material blocking and bridging.

3.Stable vibration solution for bulk material discharge.

Introduction

JFZ Flange-Type Vibration Exciter is a vibration device designed with a flange mounting structure.It is installed on bins, hoppers, or chutes through a flange connection, providing strong and stable vibration to improve material flow.

With its firm installation and directional vibration output, the JZQ exciter is widely used in bulk material handling systems to prevent material arching, sticking, and blocking.

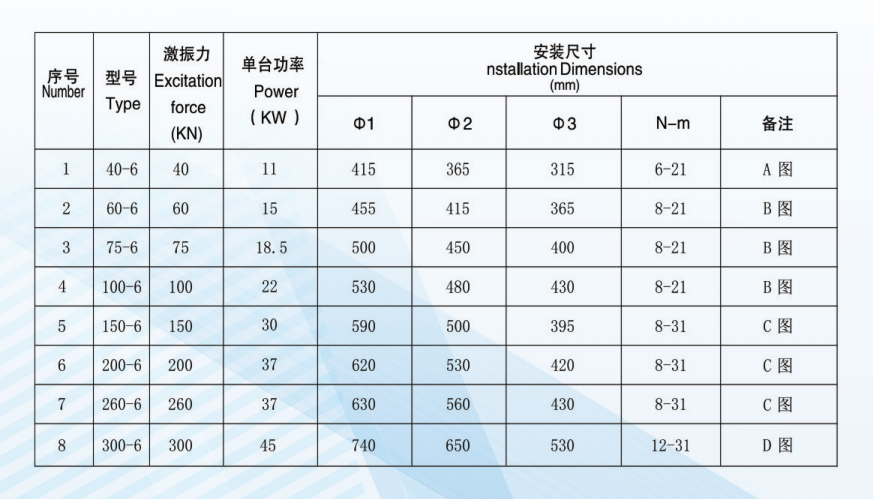

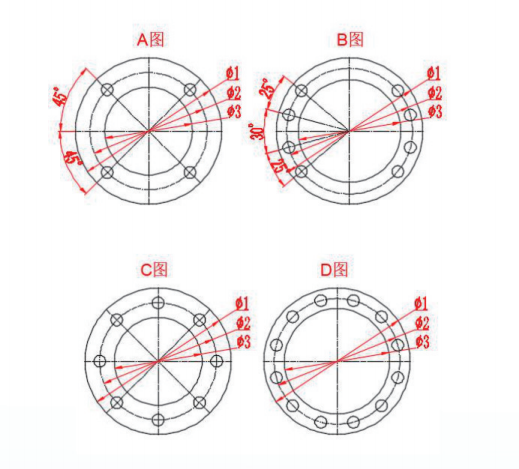

Technical Specifications and Dimensions Table

NO.	Type	Excitation Force(KN)	Power(KW)	Installation Dimensions(mm)
NO.	Type	Excitation Force(KN)	Power(KW)	Φ1	Φ2	Φ3	N-M	Remark
1	40-6	40	11	415	365	315	6-21	A
A	60-6	60	15	455	415	365	8-21	A
3	75-6	75	18.5	500	450	400	8-21	B
4	100-6	100	22	530	480	430	8-21	B
5	150-6	150	30	590	500	395	8-21	C
6	200-6	200	37	620	530	420	8-21	C
7	260-6	260	37	630	560	430	8-21	C
8	300-6	300	45	740	650	530	12-21	D

Advantages

Factory direct supply

As a source manufacturer, we produce vibration motors and equipment on a large scale, eliminating intermediate links, with controllable costs and efficient supply. With strong strength, we are rooted in the industry and directly supply you with source products.

Products and services

Introduce advanced technology and innovation, and create vibration products based on "scientific, reliable, and stable" principles. We can provide a complete set of solutions and supporting services that meet diverse needs and are widely favored both domestically and internationally. With mature products and diverse services, we can help you efficiently solve vibration application problems.

R&D TEAM

Deeply cultivating for nearly 20 years, gathering professional talents, focusing on research in the field of vibration. We not only draw on the forefront of foreign technology, but also closely follow the actual situation of domestic and foreign customers, continuously improve and innovate, use profound technical accumulation and keen insight, innovate, and ensure product performance leads the industry.

Application

Mining Materials

Chemical Industry

Food Processing

Metal Powder

Petroleum Refining
