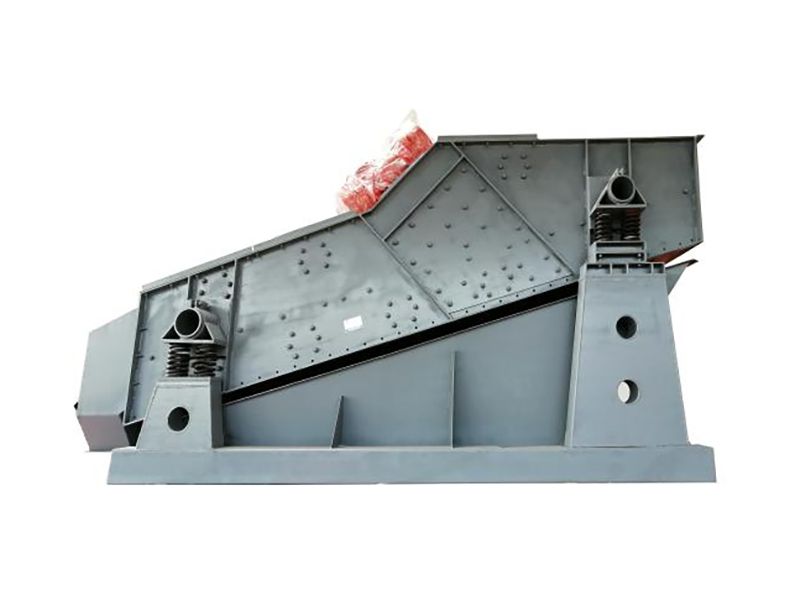

The GZS Series High-Efficiency Linear Vibrating Screen is a high-capacity heavy-duty screening equipment with a screen box movement trajectory approximately in a straight line. This series of screens has a simple structure, a large screening capacity, low energy consumption, and easy maintenance, and is widely used in mining, coal, power, metallurgy, building materials, refractory and other industries for the classification of larger lump materials and medium-sized and small granular materials.Product Features and Application Range:1. Suitable for heavy, medium and fine screening operations of various types.2. High frequency, large inclination structure, high processing capacity and screening efficiency.3. Adopts a whole frame structure for assembly, with stronger load-bearing capacity.4. Laser cutting technology ensures no cracking risks associated with traditional welding methods.5. The power unit can be driven by a vibrating motor or a common motor through a coupling to the exciter, to meet different needs in terms of use or production environment.6. The screen surface can be made of metal woven mesh, bars, slots, perforated, or welded forms.7. The screen surface can be either single-layer or multi-layer, to meet different requirements for screening operations.Main technical parameters型号Type筛面尺寸（mm）Screen size筛面层数Layers筛面孔径Screenaperture(mm)入料粒度Feed size(mm)振幅Amplitude (mm))处理量Processingcapacity (t/h)电机功率Power (kw)GZS-10201000*20001-20.5-50≤1506-810-1801.5×2GZS-10301000*300015-2503.0×2GZS-12241200*240012-2002.2×2GZS-15301500*30000.5-80≤25020-3503.7×2GZS-15401500*400025-4005.5×2GZS-18361800*360030-4507.5×2GZS-18421800*420035-5007.5×2

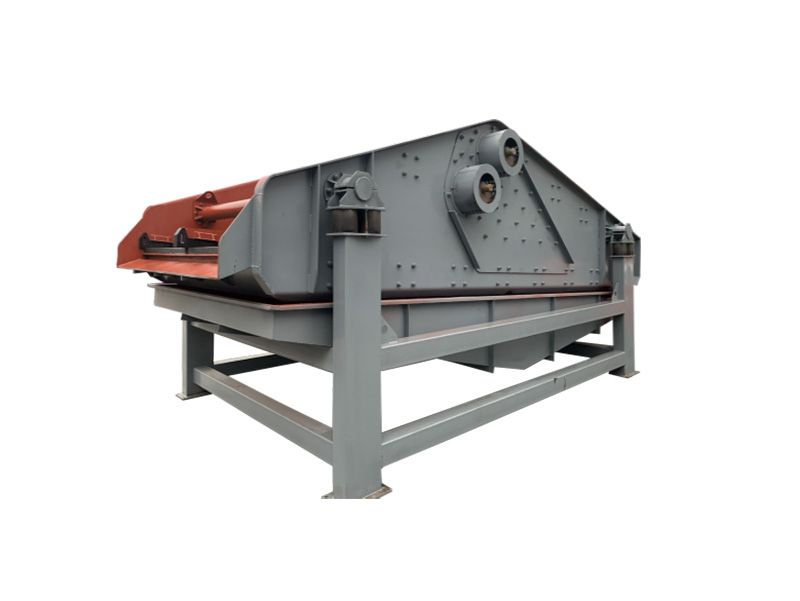

TS Type Linear Vibrating Screen uses an exciter or vibration motor as the vibration source, causing the screen box to move back and forth in a linear motion under the action of the exciting force. The material is thrown up and jumped forward on the screen surface during transportation. According to different screening requirements, different screen inclination angles can be adopted. It can be used for dry and wet screening and dehydration, de-intermediation, and de-sludging of medium and fine grain materials in industrial departments such as coal, mining, power generation, sugar, salt, chemical industry, etc. This series of screens has a large processing capacity, with reasonable technical parameters, high structural strength and rigidity, stable operation, reliability, low noise, and convenient maintenance.Product Features1. The screen plate is made of wear-resistant flexible polyurethane material and installed in a modular way. Local wear can be replaced locally, with low spare parts costs.2. High-quality manganese steel is used for the steel, and the main beam is designed as a whole type of material and fully stress-relieved.3. The bottom crossbeam is designed as a whole type of material and has a surface of wear-resistant rubber protection.4. The side plates and guard plates are processed by CNC machines and linked by high-strength bolts without welding seams.Main technical parameters型号Type筛面尺寸（mm）Screen size筛面倾角Sieve angle(°)筛面孔径Screenaperture(mm生产能力Production capacity(t/set-h)电机功率Power (kw)TS-15361500*36000(-5、+5)0.25~115-307.5×2TS-18361800*360025-407.5×2TS-21362100*360040-707.5×2TS-24362400*360040-807.5×2TS-24452400*450060-9011×2TS-30613000*610080-12018.5×2

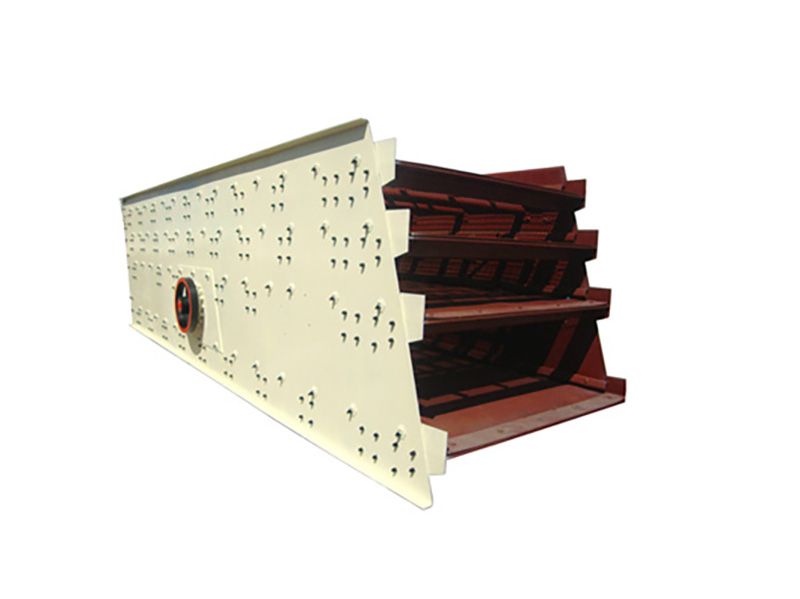

The movement trajectory of the YK vibrating screen is circular, and it performs circular motion. It is a multi-layer vibrating screen. The vibrating screen uses a eccentric shaft exciter and eccentric weights to adjust the amplitude, which can perform multi-layer screening and has a wide range of screening specifications. It is a stone screening machine specifically designed for processing sand and gravel materials, but it can also be used in mining, mineral processing, building materials, and coal mining industries for product grading. It has the features of stable structure and strong excitation force.Product Features1. The vibrator adopts a block eccentric form, which not only increases the single eccentric mass exciting force of the vibrator, but also makes the exciting force adjustable in real time, convenient for modular design and use;2. The structure of the screening machine tends to be simplified, which is beneficial to improving the manufacturing technology level and assembly accuracy;3. Flexible connections are used, such as cross-axle universal joint transmission shaft or rubber coupling, which run smoothly;4. The screening efficiency of the machine is higher, the throughput is larger, the service life and the overall service life of the machine are longer;5. The maintenance and maintenance of the equipment are simple and convenient, and the overall economic benefits of the machine are significantly improved.Main technical parameters型号Type筛面尺寸（mm）Screen size筛面层数Layers筛面倾角Sieve angle(°)振幅Amplitude (mm)处理量Processingcapacity (t/h)电机Electric motor型号Type功率 Power (kw)YK-12301200*30001-315-306-10230Y160L-611YK-14451400*4500270Y200L1-618.5YK-16451600*4500300Y200L1-618.5YK-18451800*450012-14500Y225M-822YK-20452000*4500550Y225M-822YK-20602000*6000600Y250M-830YK-24452400*4500650Y250M-830YK-24602400*600750Y280S-837YK-30523000*5200850Y280S-837
