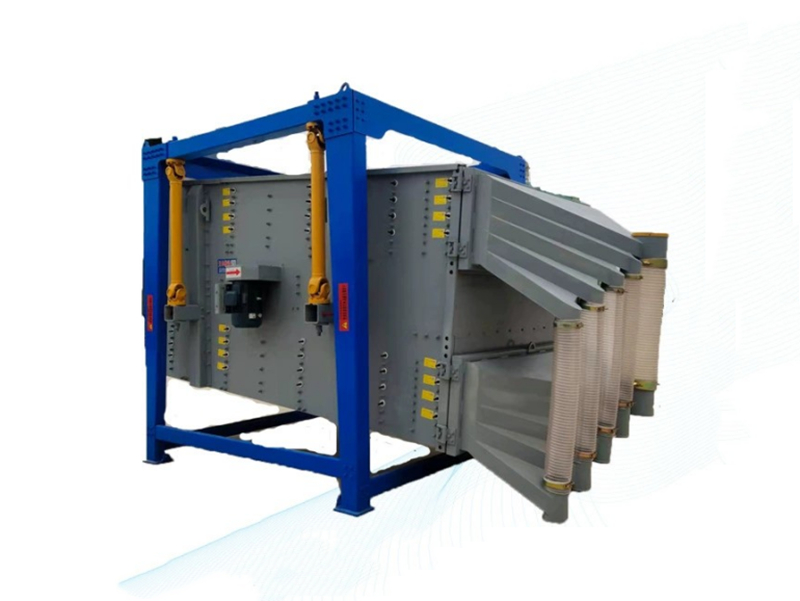

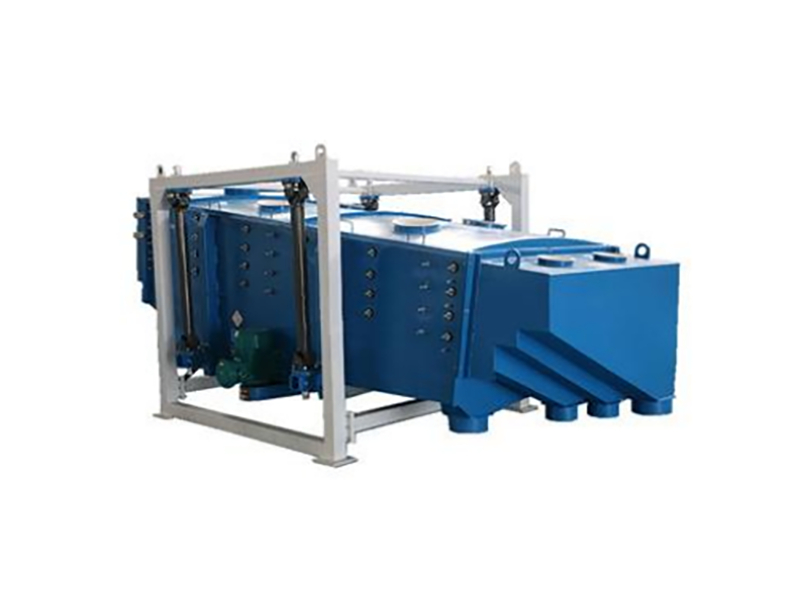

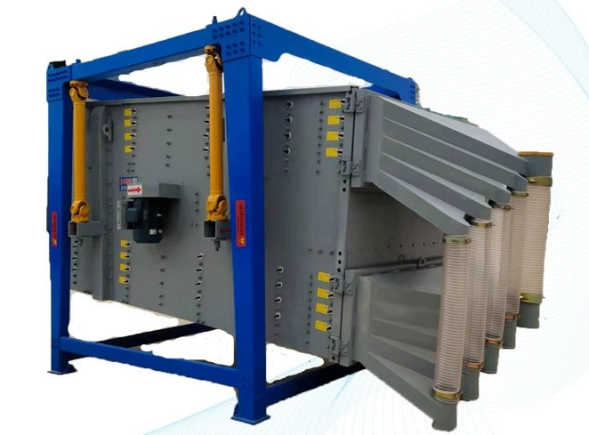

The square vibrating screen is a simulated manual screening equipment with a screen body that performs a horizontal circular rotary motion. The equipment can be changed according to customer needs for various numbers and combinations of screen layers. Because its working state is stable and there is no up-and-down vibration during operation, the product has the technical features of high output, high precision, long service life of the screen mesh, and low failure rate, which are greatly improved compared to traditional screening machines.
Product features and scope of use:
1. Full enclosed structure, no dust flying, low vibration and low noise of the screening machine, which meets environmental protection requirements.
2. Easier screen mesh replacement, simple operation, and reliable fastening.
3. Low frequency and small load, the service life of parts is increased by 5-10 times.
Equipped with a screen mesh cleaning device, the screen mesh is not blocked.
4. Designed with exquisite craftsmanship and unique structure, effectively achieving 7-level separation, screening precision up to 90-95%.
5. A square vibrating screen can be cleverly combined to become a dual-channel compound vibrating screen, which can double the processing capacity and screening precision, making it a good choice for high-output customers.
Main technical parameters
型 号 Type | 筛面尺寸（mm） Screen size | 筛面层数 Layers | 筛面倾角 Sieve angle (°) | 回转频次 Rotation frequency(r/min) | 筛箱行程 Screen box movement (mm) | 电机功率 Motor power (KW) |
FYBS-1036 | 1000*3600 | 1-9 | 5±3 | 180-260 | 25-60 | 3 |
FYBS-1236 | 1200*3600 | 4 | ||||
FYBS-1536 | 1500*3600 | 5.5 | ||||
FYBS-2040 | 2000*4000 | 7.5 |
