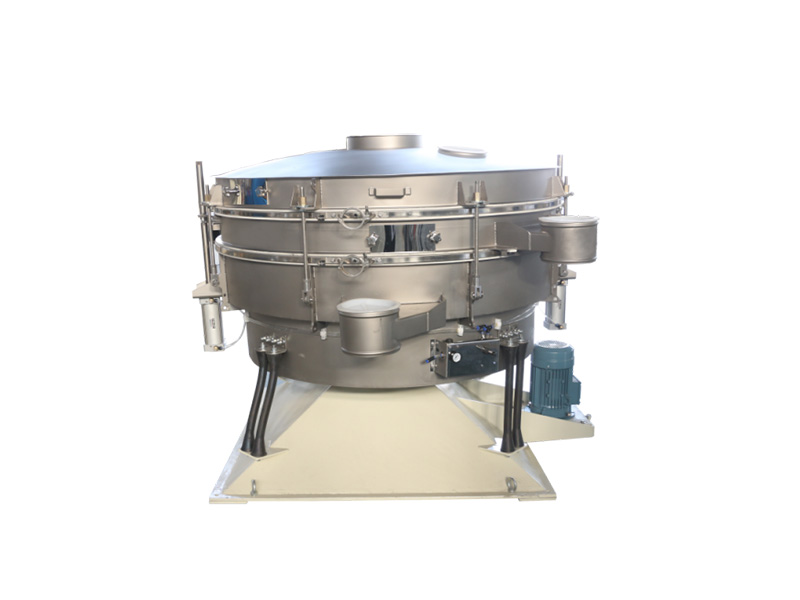

The wing screen is a kind of vibration screen that simulates the motion of artificial screen to a large extent, which is the vibrating screen that simulates the artificial screen. Suitable for screening all kinds of materials, including fine, ultra-fine powder materials, in the screening accuracy, efficiency, screen life and other indicators are 5-10 times of the conventional round sieve.
Product features:
1. Up to 5 times processing per unit area of traditional screening equipment;
2. Material shows gradual spiral trajectory on screen surface, screen accuracy up to 90% -99%;
3. Small volume, light weight, arbitrary adjustment within 360° circumference.
4. low frequency, small load work, the screen is not easy to damage, reduce the operation and maintenance costs.
5. fully closed structure, there is no material dust leakage phenomenon, workers are safer to operate.
Main technical parameters
Type | Diameter(mm) | Screen area （m²） | Feed size(mm) | Screening size(mm) | Layers | Motor power（kW） |
YBS-1000 | 1000 | 0.66 | ≤25 | 0.073-3 | 1-5 | 1.5 |
YBS-1200 | 1200 | 0.98 | 2.2 | |||
YBS-1500 | 1500 | 1.81 | 4 | |||
YBS-2000 | 2000 | 2.8 | 4 | |||
YBS-2500 | 2500 | 4.61 | 5.5 |
Clean ways:
1. Ultrasonic screen cleaning
Ultrasonic screen cleaning is suitable for the processing of very fine materials. This system uses high-frequency vibrations generated by the ultrasonic generator to reach the screen to achieve the purpose of screen cleaning. This device not only effectively cleans and unblocks the screen, but also significantly improves production capacity. There are currently our company's self-made ultrasonic and imported ultrasonic for users to choose. In addition, the style can be updated in time to meet the needs of different screening processes.
2. Bouncing ball screen cleaning
This screen cleaning method is achieved by irregularly striking the screen with high-performance bouncing balls located below the screen and above the ball support plate. The structure is simple and easy to operate, and the effect is significant. It is suitable for screen cleaning and anti-blocking in most screening operations.
