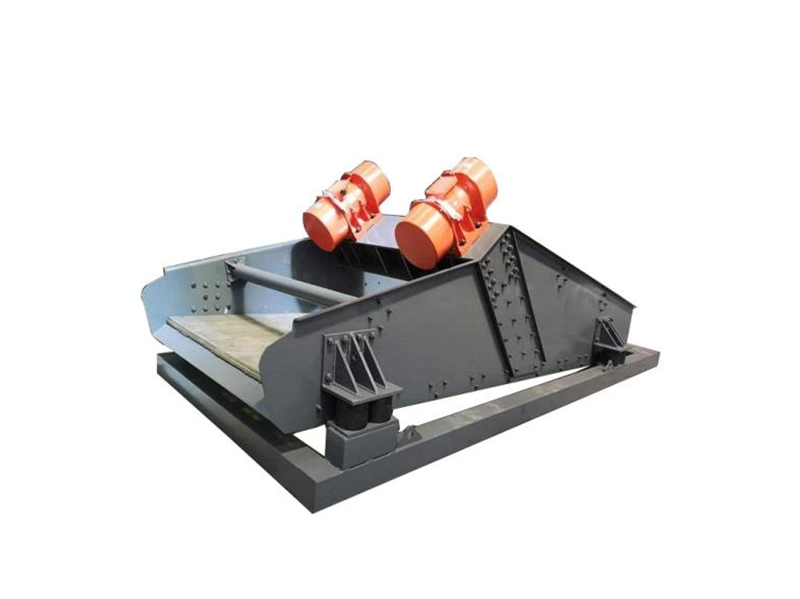

TS Type Linear Vibrating Screen uses an exciter or vibration motor as the vibration source, causing the screen box to move back and forth in a linear motion under the action of the exciting force. The material is thrown up and jumped forward on the screen surface during transportation. According to different screening requirements, different screen inclination angles can be adopted. It can be used for dry and wet screening and dehydration, de-intermediation, and de-sludging of medium and fine grain materials in industrial departments such as coal, mining, power generation, sugar, salt, chemical industry, etc. This series of screens has a large processing capacity, with reasonable technical parameters, high structural strength and rigidity, stable operation, reliability, low noise, and convenient maintenance.
Product Features
1. The screen plate is made of wear-resistant flexible polyurethane material and installed in a modular way. Local wear can be replaced locally, with low spare parts costs.
2. High-quality manganese steel is used for the steel, and the main beam is designed as a whole type of material and fully stress-relieved.
3. The bottom crossbeam is designed as a whole type of material and has a surface of wear-resistant rubber protection.
4. The side plates and guard plates are processed by CNC machines and linked by high-strength bolts without welding seams.
Main technical parameters
型号 Type | 筛面尺寸（mm） Screen size | 筛面倾角 Sieve angle (°) | 筛面孔径 Screen aperture (mm | 生产能力 Production capacity (t/set-h) | 电机功率 Power (kw) |
TS-1536 | 1500*3600 | 0(-5、+5) | 0.25~1 | 15-30 | 7.5×2 |
TS-1836 | 1800*3600 | 25-40 | 7.5×2 | ||
TS-2136 | 2100*3600 | 40-70 | 7.5×2 | ||
TS-2436 | 2400*3600 | 40-80 | 7.5×2 | ||
TS-2445 | 2400*4500 | 60-90 | 11×2 | ||
TS-3061 | 3000*6100 | 80-120 | 18.5×2 |
