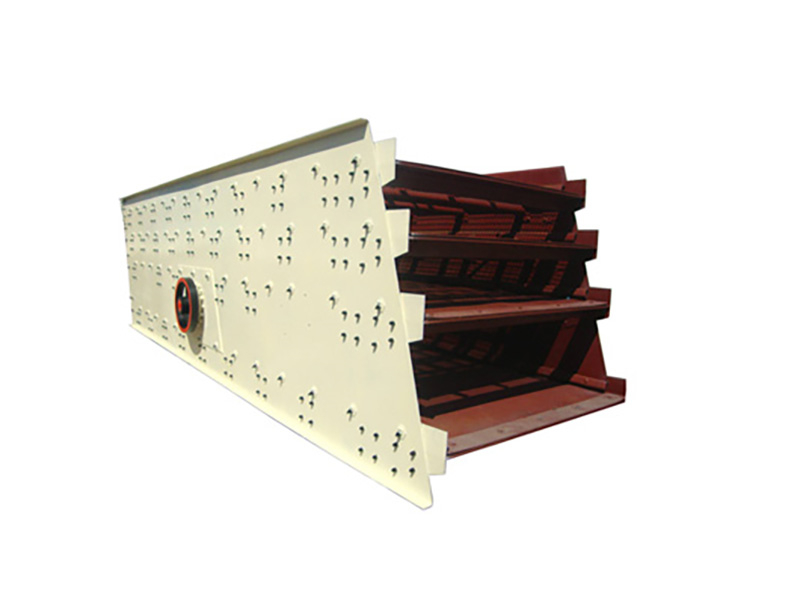

The movement trajectory of the YK vibrating screen is circular, and it performs circular motion. It is a multi-layer vibrating screen. The vibrating screen uses a eccentric shaft exciter and eccentric weights to adjust the amplitude, which can perform multi-layer screening and has a wide range of screening specifications. It is a stone screening machine specifically designed for processing sand and gravel materials, but it can also be used in mining, mineral processing, building materials, and coal mining industries for product grading. It has the features of stable structure and strong excitation force.
Product Features
1. The vibrator adopts a block eccentric form, which not only increases the single eccentric mass exciting force of the vibrator, but also makes the exciting force adjustable in real time, convenient for modular design and use;
2. The structure of the screening machine tends to be simplified, which is beneficial to improving the manufacturing technology level and assembly accuracy;
3. Flexible connections are used, such as cross-axle universal joint transmission shaft or rubber coupling, which run smoothly;
4. The screening efficiency of the machine is higher, the throughput is larger, the service life and the overall service life of the machine are longer;
5. The maintenance and maintenance of the equipment are simple and convenient, and the overall economic benefits of the machine are significantly improved.
Main technical parameters
型号 Type | 筛面尺寸（mm） Screen size | 筛面层数 Layers | 筛面倾角 Sieve angle (°) | 振幅 Amplitude (mm) | 处理量 Processing capacity (t/h) | 电机 Electric motor | |
型号 Type | 功率 Power (kw) | ||||||
YK-1230 | 1200*3000 | 1-3 | 15-30 | 6-10 | 230 | Y160L-6 | 11 |
YK-1445 | 1400*4500 | 270 | Y200L1-6 | 18.5 | |||
YK-1645 | 1600*4500 | 300 | Y200L1-6 | 18.5 | |||
YK-1845 | 1800*4500 | 12-14 | 500 | Y225M-8 | 22 | ||
YK-2045 | 2000*4500 | 550 | Y225M-8 | 22 | |||
YK-2060 | 2000*6000 | 600 | Y250M-8 | 30 | |||
YK-2445 | 2400*4500 | 650 | Y250M-8 | 30 | |||
YK-2460 | 2400*600 | 750 | Y280S-8 | 37 | |||
YK-3052 | 3000*5200 | 850 | Y280S-8 | 37 | |||
